The Ace




The Ace, Hard Dog's response to popular demand for a traditional roll bar designed with more rearward placement for better head clearance that doesn't interfere with the stock seat belts. The flexibility of this design allows us to offer this bar in many configurations to include: one or two diagonals, harness bar and side or top main hoop rear bracing. The diagonals can be located in the main hoop or, to the rearward braces. Or if you prefer, no diagonal or harness bar at all. Fits all Miatas from 1990 - 2005, compatible with Mazda hard tops, plastic rear window soft tops and aftermarket or OEM glass rear window convertible tops.* The Ace integrates with the unibody framework inside the rear wheel wells and seat belt towers creating a structure stronger than the individual component parts using the same mounting system as our Deuce model.

Note: Due to the more rearward placement, between the NA and NB seat belt towers, the Ace is 9" narrower than the Sport and Hard Core models. A safety consideration for taller drivers.

NASA HPDE and SCCA Time Trials / Solo compliant when equipped with diagonal bracing.





  • Not sure which Roll Bar is right for you? Contact Us!


  • Gift Certificates make the perfect gift any time of year!

Features include:

  • Allows full seat travel and tilt

  • Complete use of Mazda hard top with side latches and soft top

  • Compatible with 1990 - 2005 Miatas with original equipment or most after market plastic or glass rear windows*

  • Durable black powdercoat finish

  • Constructed of highest quality 1.75" X .120" drawn over mandrel tubing

  • 8 structural attachment points w/ laser cut 3/16" mounting and backup plates

  • Complete hardware kit w/ grade 8 bolts

  • Not compatible with factory windblocker

Roll Bar Accessories:



Ace Roll Bar - 1990 - 2005 - Contiguous 48 U.S. States
Shipping $130.00

Item/Number Description
Price
ACE Side Braced No Diagonal No Harness Bar
$500.00
AC1D Side Braced Main Hoop Single Diagonal
$560.00
AC2D Side Braced Main Hoop Double Diagonals
$620.00
H Harness Bar between rearward braces
$60.00
B Diagonal(s) to rearward braces
(Not compatible with glass rear window convertible tops)
$25.00
T Rearward Braces to top of main hoop
$50.00

Stitched Covers w/ our Custom Formed High Density Padding - Cover Shipping $30.00 Contiguous U.S.
Item/Number Description
Price
V Black Vinyl w/ custom formed padding
$120.00
L Black Leather w/ custom formed padding
$175.00

Hard Dog Custom Formed High Density Padding - Pad Shipping $30.00 Contiguous U.S.
Item/Number Description
Price
CPAD Formed Pad Only
$65.00

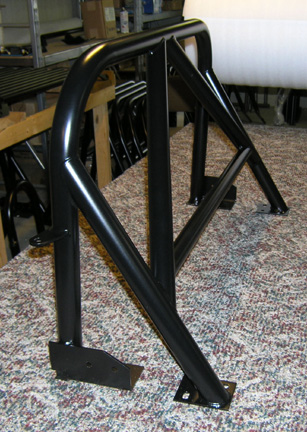

Ace Side Braced Roll Bar Double Diagonal w/ Harness Bar
Side Braced Ace
w/ Main Hoop Double Diagonals and Harness Bar in Rear Braces
Click to Enlarge Image

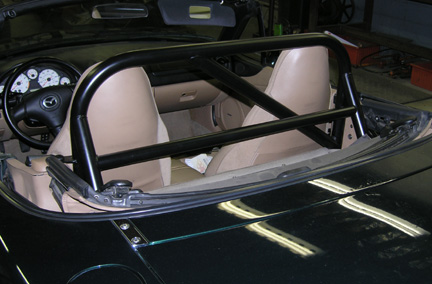

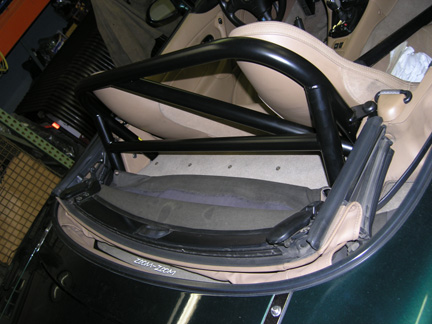

Ace Side Braced Roll Bar, Single Diagonal w/ Harness Bar in 2002 Miata
Side Braced Ace
w/ Main Hoop Diagonal and Harness Bar in Rear Braces
In 2002 Miata
Click to Enlarge Image

Ace Side Braced w/ Vinyl Cover
Side Braced Ace
w/ Vinyl Cover
In 1999 Miata
Click to Enlarge Image

Ace Side Braced Roll Bar Double Diagonals & Harness Bar to Rear Braces
Side Braced Ace
w/ Double Diagonals and Harness Bar in Rear Braces
(Not compatible with glass rear window convertible tops)
Click to Enlarge Image

*Aftermarket convertible top glass rear window must be approximately the same size and shape as OEM 1999 - 2005 glass rear window.

WARNING: This article is sold without warranty, expressed or implied. No warranty is made to this product's ability to protect the user from any injury or death. The user assumes that risk.
